Laser

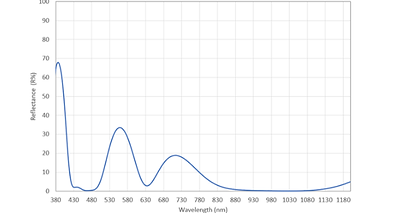

Laser Window

Laser Window.png

Coating specifications

AOI=5°

R% < 0.5% 450nm / 915nm /980nm / 1064nm

Laser Beam-splitter(Transmittance)

Laser Beam-splitter (Transmittance).png

Coating specifications

AOI=45 +/- 3°

Ts max> 97 % 900-1100nm

Tp max> 97 % 900-1100nm

Laser Beam-splitter(Reflectivity)

Laser Beam-splitter(Reflectivity).png

Coating specifications

AOI=45 +/- 3°

Rs (average)> 99 % 430-470nm

Rp (average)> 99 % 430-470nm

Rs max< 3 % 900-1100nm

Rp max< 3 % 900-1100nm
