LIFE SCIENCE
415nm Narrow Bandpass Filter
Coating specifications
Center Wavelength
FWHM
Transmission
Blocking Range
415nm ± 2nm
10nm ± 2nm
>70%
OD > 4 @ 200nm to 700nm
505nm Bandpass Filter
Coating specifications
T(max) ≤ 0.1% (OD ≥ 3)
T(ave) ≤ 0.01% (OD ≥ 4)
T(min) ≥ 85%
T(ave) ≥ 90%
T(max) ≤ 0.1% (OD ≥ 3)
T(ave) ≤ 0.01% (OD ≥ 4)
300nm to 385nm
300nm to 385nm
400nm to 480nm
400nm to 480nm
500nm to 800nm
500nm to 800nm
VIS-NIR Notch Filter
.jpg)
520nm Bandpass Filter
Coating specifications
T(max) ≤ 0.1% (OD ≥ 3)
T(ave) ≤ 0.01% (OD ≥ 4)
T(min) ≥ 85%
T(ave) ≥ 90%
T(max) ≤ 0.1% (OD ≥ 3)
T(ave) ≤ 0.01% (OD ≥ 4)
300nm to 500nm
300nm to 500nm
516nm to 526nm
516nm to 526nm
540nm to 800nm
540nm to 800nm

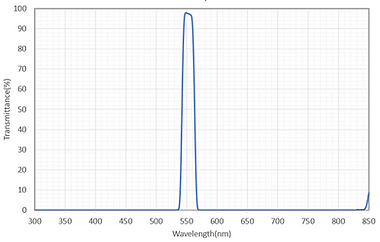

550nm Bandpass Filter
Coating specifications
T(max) ≤ 0.1%(OD ≥ 3)
T(ave) ≤ 0.01% (OD ≥ 4)
T(min) ≥ 85%
T(ave) ≥ 90%
T(max) ≤ 0.1% (OD ≥ 3)
T(ave) ≤ 0.01% (OD ≥ 4)
300nm to 535nm
300nm to 535nm
547nm to 555nm
547nm to 555nm
575nm to 800nm
575nm to 800nm
